AIM SOLO 2 DL Data Logging Timer

AIM SOLO 2 DL Data Logging Timer

Regular price $832.00
Regular price Sale price $832.00
Sale Sold out
SOLO 2 DL Harness
Mount

AiM Sports Solo 2 DL Data Logging Lap Timer

THE BRAND NEW DATA-LOGGING GPS LAP TIMER FOR MOTORSPORTS

The new Solo 2 DL receives data from two satellite constellations, GPS and Glonass; this is a huge step forward since it is unbelievably faster and more precise than the previous version. Power-on requires only a few seconds and lap times are calculated with a max 2/100 sec. of tolerance thanks to 10Hz GPS sampling. A sleek newly-designed case with easier-to-use metal buttons add a premium look and feel to the world's most popular data-logger and GPS lap timer.

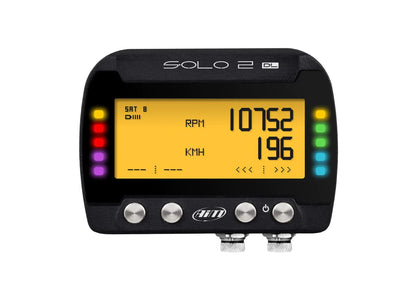

The screen can be back-lighted in one of the seven colors:

AiM Solo 2 Color Change

AiM Solo 2 All Colors

ECU CONNECTION

Solo 2 DL -- the Solo with an ECU connection -- has over a thousand ECU protocols in its database. Easily connect your Solo 2 DL to your ECU and get reams information with just one cable. In case your ECU protocol isn't in the database, no problem: an ECU Driver Builder is available in the included Race Studio 3 software, allowing you to create your protocol yourself. This gives you access to a huge amount of data from your car that can be overlaid with GPS data to create an incredibly powerful analysis and learning tool!

Choose your ECU cable:

  • OBD2: the standard vehicle diagnostic port beneath your dash supplies the Solo 2 DL with a wealth of information. This is the standard cable most people will use.
  • CAN/RS232: the Solo 2 DL can be connected to your CAN Bus for an even richer, broader spectrum of information than OBD2. This cable can require a bit more know-how to connect, however.
  • Coil RPM: the Solo 2 DL now features a digital input allowing to log RPM either from square wave signals (8-50 V each signal) or pulse signals (150-450 V ignition coil trigger – primary circuit).

FIND YOUR TRACK QUICKLY

Solo 2 DL has access to a database of more than 3,000 tracks all over the world! As soon as it switches on, the Solo 2 DL identifies its position, recognizes the starting line coordinates of the track, and is ready to start sampling lap times. If your track isn't in the database, no problem: the Solo 2 DL will automatically enter into autolearning mode, figures out the characteristics of the track, and starts lap-timing anyway.

PREDICTIVE LAP TIME LEDS

The new Solo 2 DL's predictive lap time engine is now even more reliable. And with configurable RGB LEDs, it will give you a clear, fast indication of how your current lap compares with your best possible lap. That's functionality you typically find only on expensive driver-coaching electronic aids; now it's at your fingertips with the Solo 2 DL!

RACE MODE SELECTION

Solo 2 DL can manage different types of races:

  • Speed races in a closed circuit
  • Point to-point races
  • Regularity
  • Performance tests (0-100 km/h etc.)

In each of these configurations, Solo 2 DL gives the relevant information during the race/test along with powerful data review immediately after each session.

WiFi & iPHONE CONNECTION

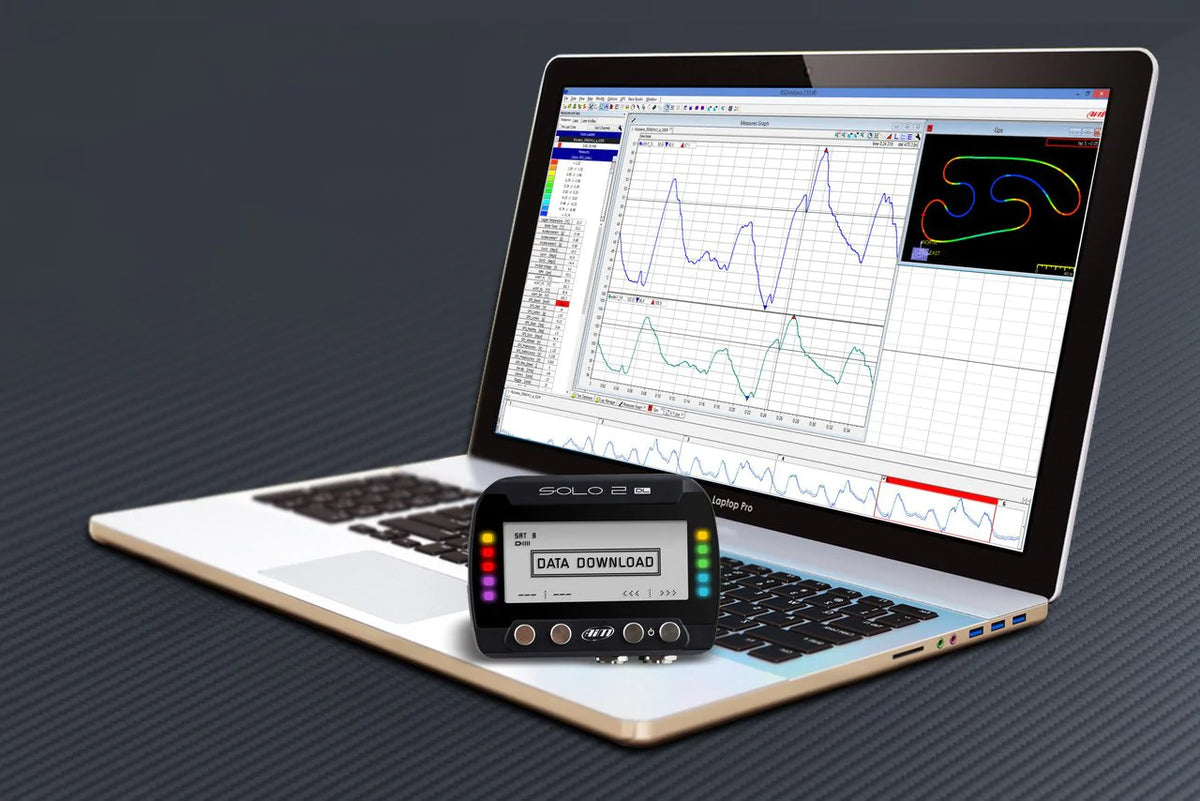

WiFi communication with your laptop is easy, fast, and with no connectors or cables. It's the best way to configure your Solo 2 DL, manage the track database, and download lap data to your PC.

Connect your Solo 2 DL to your iPhone for quick and easy data analysis, managing your track database, etc.

SMARTYCAM INTEGRATION

The perfect connection: the Solo 2 DL takes all the data from your ECU, merges it with GPS lap information, and transmits everything seamlessly to a SmartyCam HD or SmartyCam GP HD . The resulting video includes your ECU and lap data in a graphical overlay!
